Technology

The Ecas4 WDS - Safe, ecological, water sanitisation and surface disinfection systems

Our patented technology produces a highly effective, genuinely pH neutral, electro‑chemically active, metastable disinfectant without the use of toxic chemicals.

Ecas4-Anolyte production is entirely automatised by means of an electrolytic procedure. The Ecas4 apparatus is based on the Membrane Electrolytic Reactor system with four chambers.

The Ecas4 systems fully comply with European legislation, including DVGW requirements and are currently installed and in use at a number of facilities in Europe.

Models:

WDS40

40 L/hr of Ecas4‑Anolyte

WDS80

80 L/hr of Ecas4‑Anolyte

WDS160

160 L/hr of Ecas4‑Anolyte

WDS500

500 L/hr of Ecas4‑Anolyte

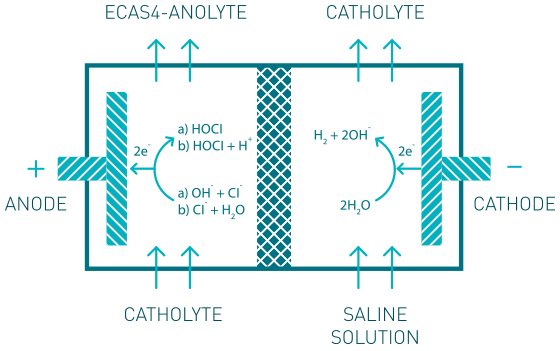

Worldwide Patented Four Chamber Cell System

The Ecas4-Anolyte solution has a high redox power and is genuinely pH neutral and non‑corroding due to our unique patented 4-chamber system.

The Ecas4 apparatus is based on the Membrane Electrolytic Reactor system with four chambers (Patents - PCT/IT 2006 000 829 and PCT/EP 2009 065 077). The reactor features allow the typical synthesis of a neutral Anolyte (with a pH close to 7) characterized by an ORP (Oxidation Reduction Potential) of about 850-900 mV, a chloride content of around 0.35% and an active chlorine content of about 350 mg/l.
